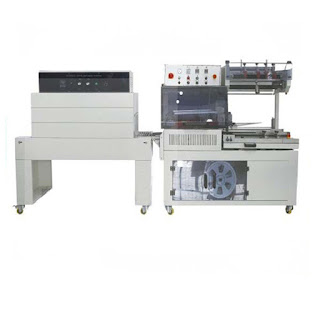

Introduction of Automatic L type Sealing and shrinking machine QL5545+ BS-D4520 packing machine
1.High degree of automation, sealing and shrinking can be completed at one time, you can achieve high-speed unattended automatic operation. Can be used directly with the production line.
2.Advanced cutter, sealed firmly. Sealing knife part of the use of Teflon layer, carrying sticky high temperature, sealing is not cracking, no coking, no smoke zero pollution, sealing frame using high quality alloy steel, the framework is not easy to deformation.
3.For the pursuit of quality and best performance, the use of well-known brands at home and abroad accessories, such as Omron PLC, sent under the photosensitive components. But also passed the export CE certification.
4.According to the actual size of the packaging products to adjust the sealing machine height width, a wide range of packaging, greatly facilitate the use of the majority of users.
Main Parameter of Automatic L type Sealing and shrinking machine QL5545+ BS-D4520 packing machine
Model
|
QL5545
|
BS-D4520
|
Voltage
|
220v 50hz
|
380V 50hz
|
Maximum film width
|
520mm H>800mm
|
/
|
Maximum film width
|
500mm H<800mm
|
/
|
Sealing time
|
0s-3s
|
/
|
film thickness
|
/
| |
Working speed
|
0-25bags/min 0-17m/min
|
0-15m/min
|
Working Air pressure
|
0.5Mpa
|
/
|
Machine power
|
2.1KW
|
13.2kw
|
Maximum sealing size
|
L500*W400
|
/
|
Maximum packing size
|
L+2H<550mm W+2H<450mm H<120mm
|
L450*W200mm
|
Dimensions
|
L1760*W900*H1570
|
L1600*W700*H1450
|
Weight
|
320KG
|
180KG
|
Sealing temperature
|
With film thickness and temperature, usually 180°c-250°c
|
/
|
Table height
|
/
| |
Transport load
|
/
|
10KG
|
Shrink furnace size
|
/
|
L1200*W450*H200mm
|
