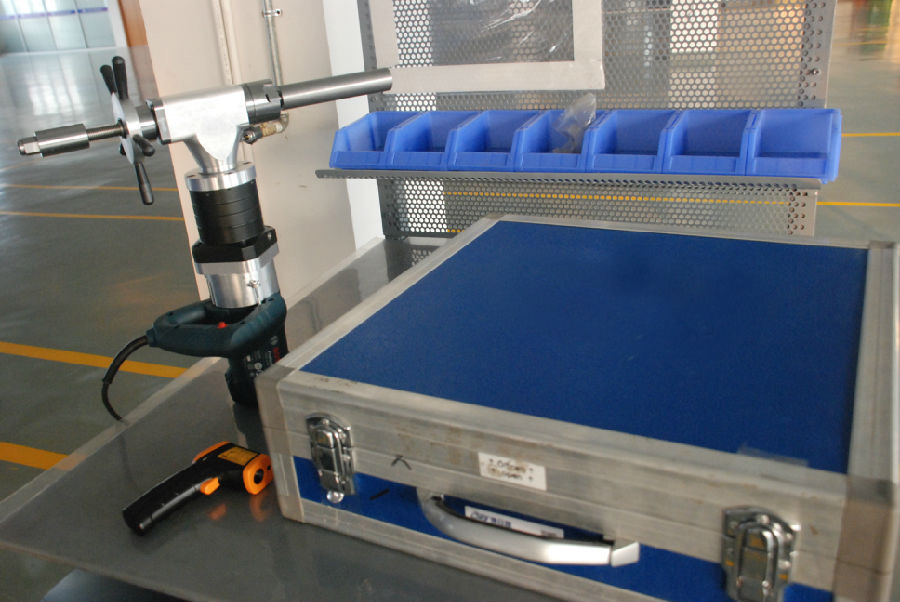

Pipe Beveling Machine,Portable Pipe Beveling Machine, 150mm-356mm Pipe Beveling Machine
The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
Drive Options
|
Pneumatic, Electric
|
Air requirement
|
900L-1500L Per minute @0.6/0.7Mpa
|
Electric requirement
|
220-240V 1PH 50/60HZ
|
Feed mode
|
Hand wheel or feed spanner, manually
|
Packaging
|
Plywood case
|
