Product Introduction

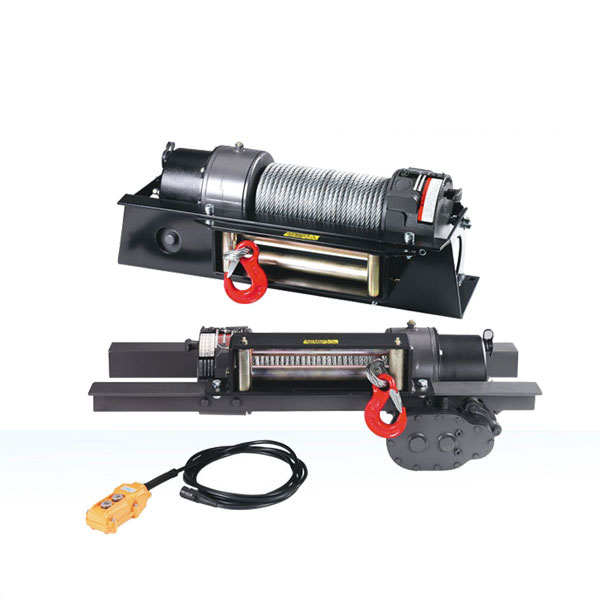

2000 Lbs Electric Winch Features:
1.Brake Assembly
Mechanical brake design , makes vehicle safety on the steep
2. Waterproof Design
Level six water-proof design expands the use of situation and long life time.
3. Low -temperature Grease
The gear box using low-temperature grease (-40 ) so that the gear can still work freely in extreme cold weather.
4. Big-power and endurable motor.
With high-performance magnet ,silver and copper commutator , high-density carbon brush , endurable 130 oil painting on wire.
5. High-quality synthetic rope instead of wire rope , make the winch light weight
Mechanical brake design , makes vehicle safety on the steep
2. Waterproof Design
Level six water-proof design expands the use of situation and long life time.
3. Low -temperature Grease
The gear box using low-temperature grease (-40 ) so that the gear can still work freely in extreme cold weather.
4. Big-power and endurable motor.
With high-performance magnet ,silver and copper commutator , high-density carbon brush , endurable 130 oil painting on wire.
5. High-quality synthetic rope instead of wire rope , make the winch light weight
Main Parameter
Single line rated pull
|
2000lb(907kg)
|
Motor
|
0.7KW/0.9hp(12V) permanent maget
|
Gear train
|
1 Stage Planetary
|
Gear ratio
|
153:1
|
Cable
|
5/32" x 50'(4.0mmx15.2m)
|
Drum size
|
1.24” x 2.88”(31.5 x 73mm)
|
Dimensions
|
L x W x H (285 x 105 x 105mm)
|
Mounting bolt pattern
|
3.13”(79.5mm)
|
Weight
|
G/W:9.0KGS N/W:7.5KGS
|
