China Separate Fishbone Removal Machine/Fish Processing Deboning Equipment Introduction

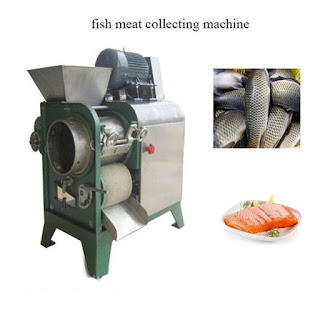

Automatic fish deboner machine , fresh fish meat separator is mainly used in fish meat collect and pick up. This machine can separate fish meat from fish bone, fish skin, fish tendon in order to raise the fish use rate and save manpower. This machine is mainly made by stainless steel.. it can debone small whole fish or half bigger fish or fish leftover.

Fish deboner machine is equipped with rubber bands for meat barrel and meat squeeze. By the mutual squeezing motion of scrolling meat barrel and rotary rubber bands,squeeze the fish into fish drums, and then leave the skins and bones outside the drum, and at last wiped out of the machine by the scraper.

Application of fish deboning machine

Features: Mainly used to extract the flesh of fish from fish skin and fishbone, separate shrimp meat from shrimp shell. High productivity but less time and energy. The food touching places are adopted highquality stainless steel, meeting the requirements of national food hygienic standards.

Features of fish meat separator machine for hotel

for freshwater fishes or seawater fishes

can be used to process small fishes directly, big fishes should be cut into segment before being put into the fish meat separator

stable performance and labor saving

stainless steel made fish meat barrel

the fish meat gathered can be used to make fish balls fish dumpling and many other fish food directly.

Details for the machine

This machine is mainly used to extract the flesh of fish from fish skin and fishbone, separate shrimp

meat from shrimp shell,and meanwhile cut the fish meat or shrimp meat into mash.It is equipped with the food grade rubber belt in mining meat barrels and squeezing meat , sending fish meat into the barrels by mutual squeezing of barrels and transmission of the rubber belt ,fish skin and bones will be left outside of the barrel, then sent out by the scrapping knife.The final fish or shrimp meat is pure and fresh.

China Separate Fishbone Removal Machine/Fish Processing Deboning Equipment Main Parameter

Model	WX-150A	WX-200A	WX-150B	WX-200B	WX-300B
Material	common steel	Common steel	SUS304	SUS304	SUS304
Motor	1.5KW	2.2KW	1.5KW	2.2KW	3KW
Capacity	180KG/H	250KG/H	180KG/H	250KG/H	500KG/H
Blet thickness	20MM	20MM	20MM	20MM	20MM
Belt length	1300MM	1600MM	1300MM	1600MM	2100MM
Cylinder diameter	162MM	170MM	162MM	170MM	219MM
Cylinder thickness	6MM	6MM	6MM	6MM	6.5MM
Mesh diameter	2.8MM	3MM	2.8MM	3MM	3.2MM
Size(MM)	800*550*800	800*650*900	800*550*800	900*700*1100	900*750*1250
Weight	150KG	200KG	180KG	280KG	360KG
