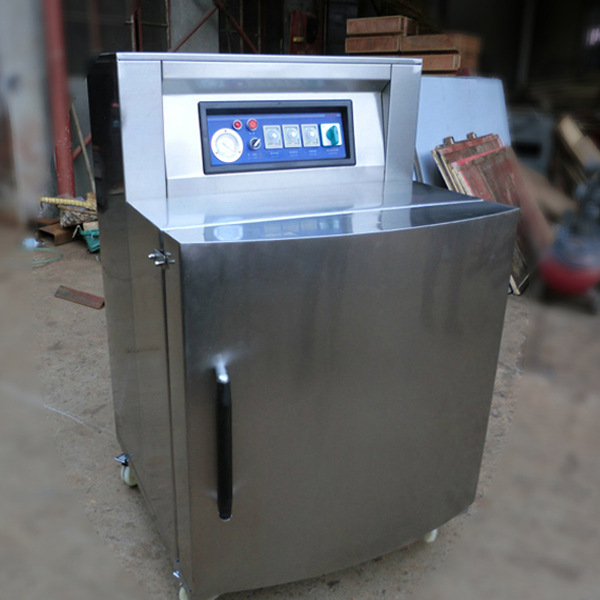

DZQ-700L/S External food vacuum packaging machine Introduction
External multi-function modified atmosphere vacuum packaging machine is a basic external vacuum packaging machine, plus could be fixed gas flush system for inertgas filling or mixed gas filling in the packaging according to customers’ actual requirements. We will supply powder filter according to power’s mesh number if the packing item is powder at customers’ option. Generally heat sealing comes with single sealer, double sealers heat sealing can be chose according to customers’ bags different thickness at customers’ option.
External multi-function modified atmosphere vacuum packaging machine is a basic external vacuum packaging machine, plus could be fixed gas flush system for inertgas filling or mixed gas filling in the packaging according to customers’ actual requirements. We will supply powder filter according to power’s mesh number if the packing item is powder at customers’ option. Generally heat sealing comes with single sealer, double sealers heat sealing can be chose according to customers’ bags different thickness at customers’ option.
DZQ-700L/S External food vacuum packaging machine Features:
1.Control system: OMRON programmable PLC, text display.
2.Pneumatic system::Taiwan Air TAK pneumatic component.
3.External vacuum suction structure: Two cylinders, two suction nozzles.
4.Lift-down conveyor, easy in operation.
5. Heavy moving wheel (with brake): The heavy moving wheel with high bearing capability, which makes customer moving easily.
DZQ-700L/S External food vacuum packaging machine Technical Parameter:
Model(vacuum packaging machine)
|
DZQ-700L/S (stainless steel)
|
Machine Dimension(mm)
|
730*830*1800
|
Sealer Form
|
Double Heat
|
Sealer Dimension(mm)
|
700*10*2
|
Sealer Power Consumption(kw)
|
1
|
Pump Capacity(m3/h)
|
20
|
Pump Power Consumption(kw)
|
1.1
|
Voltage(v)
|
110/220/240
|
Hertz(Hz)
|
50/60
|
Production Cycle(times/min)
|
2-3
|
Sealer Adjustment Range(mm)
|
1300-475
|
Conveyor Width (mm)
|
230
|
Conveyor Length (mm)
|
720
|
Conveyor Loading(kg)
|
50
|
N.W.(kg)
|
160
|
G.W.(kg)
|
230
|
Shipping Dimension(mm)
|
1900*920*1120
|
