Specifications
1, Top quality
2. Go straight with rotor
3. Well compact and seal
4. We are factory with over 20 years experience
2. Go straight with rotor
3. Well compact and seal
4. We are factory with over 20 years experience
Product Introduction

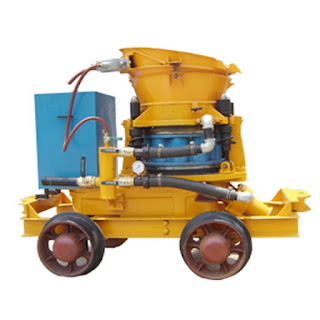

1,Advantages:This is a high-effective shotcrete machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
2,Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
3,Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.,
4,Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shocrete quality.
Main Parameter
Model
|
PZ-5B (wet)
|
Capacity
|
5m³/h
|
Max. Conveying Distance
|
horizontal200m,vertical20m
|
Max. Aggregate Diameter
|
20mm
|
Feeding Pipe Inner Diameter
|
50mm
|
Working Pressure
|
0.4-0.6Mpa
|
Air Consumption
|
7-8m³/min
|
Rotor Diameter
|
438mm
|
Motor Power
|
5.5kw
|
Gauge Distance
|
600mm( or as customers)
|
Voltage
|
380V or 660V or As customers
|
Weight
|
800kg
|
Overall Size
|
1600x700x1150mm
|
